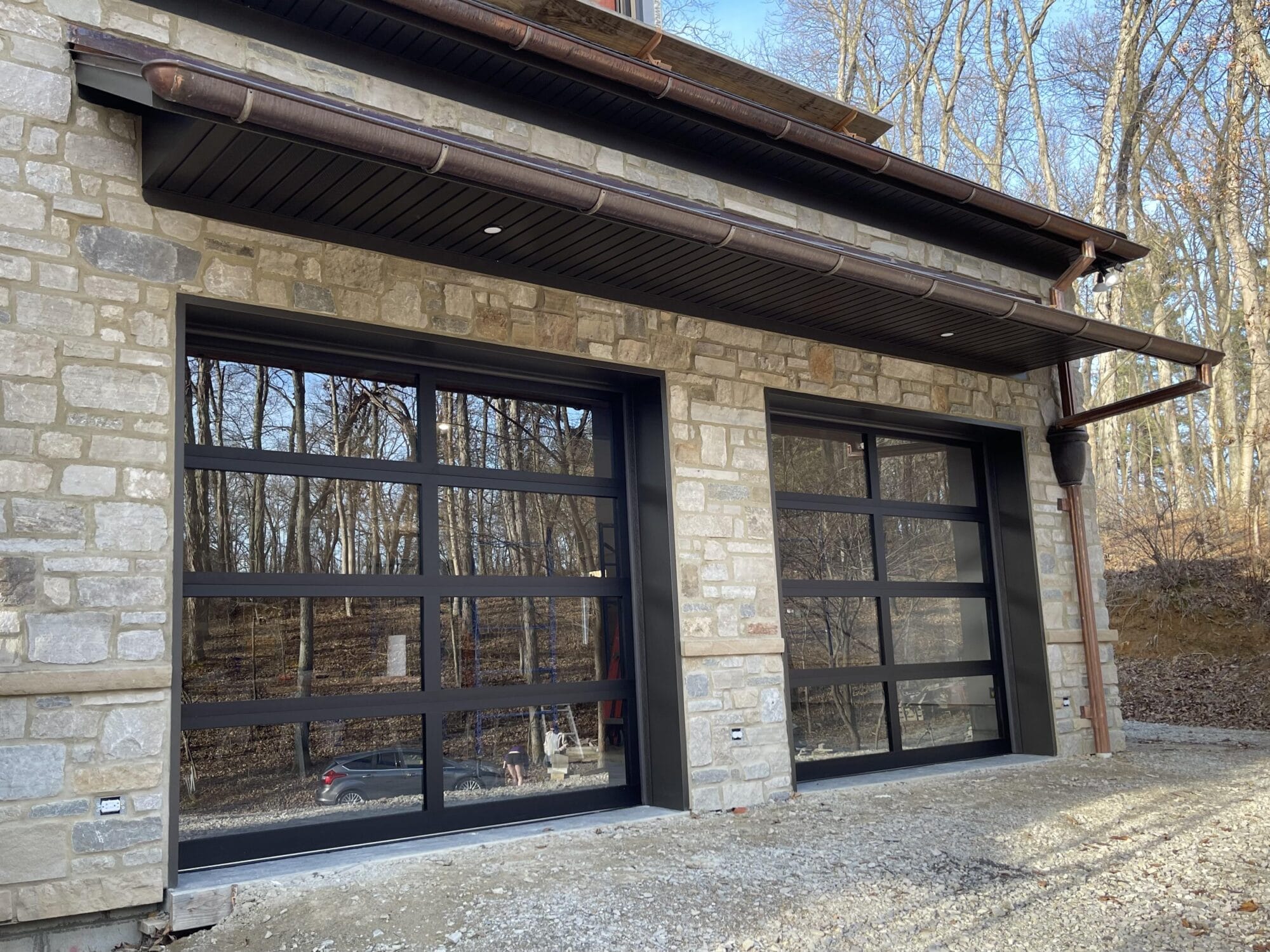

Aluminum is the go-to frame material for glass garage doors because it is light and does not rust. Contemporary full-view aluminum doors, where glass spans the full height of the door, are now at the forefront of modern design for homes. Knowing what goes into the frame and glass helps you pick aluminum garage doors that will last.
For a broader overview of glass door styles, see our glass garage doors guide.
Why Aluminum Is the Standard Frame for Glass Garage Doors
Glass is heavy. The frame holding it needs to be light.
Aluminum weighs about one-third as much as steel. That keeps the total door weight within the range of a standard 1/2 or 3/4 horsepower (HP) residential opener. A steel frame with the same glass panels would be too heavy for most openers to handle.
What this means for your home: If the frame were steel, a standard garage opener could not lift the door without burning out. Aluminum keeps the weight manageable, so you do not need to buy a more expensive motor.
Aluminum also cannot rust. When it is scratched, a protective oxide layer forms over the damaged spot automatically. Steel spreads rust outward from any scratch. In wet, humid climates like the Upper Perkiomen Valley, aluminum holds up in outdoor spaces exposed to road salt and humidity far better than steel panels that have been nicked or scraped.
The 6063 Alloy and Frame Quality
Manufacturers use 6063 aluminum alloy to build these door frames. This alloy is 97.5% aluminum with small amounts of magnesium and silicon added. That mix creates a metal that resists corrosion, holds its shape under load, and can be formed into the detailed hollow profiles a full-view frame needs to house weather seals, carry glass panels, and accept hardware and bolts through thousands of cycles.
After forming, the metal goes through precision heat treatment to set its final strength. Two grades are used:
The 6063-T5 temper is standard for home use and produces a clean surface that takes anodizing and powder coating well. The 6063-T6 temper is for very wide commercial openings over 18 feet, where the door needs extra resistance to wind pressure.
What this means for your home: 6063 is the right aluminum for this job. It is strong, rust-resistant, and flexible enough to be shaped into complex frame profiles. T5 works for almost every home. T6 is only needed on unusually wide openings.
| Property | 6063-T5 | 6063-T6 |
|---|---|---|
| Tensile Strength | 186 MPa (27,000 psi) | 241 MPa (35,000 psi) |
| Yield Strength | 145 MPa (21,000 psi) | 214 MPa (31,000 psi) |
| Surface Finish | Excellent | Good |
| Extrudability | Excellent | Moderate |
Surface Finishes and Long-Term Protection
The finish on an aluminum frame protects both the metal and its appearance. Two main finish options are available, each with different durability trade-offs. Both options preserve the sleek, sophisticated aesthetic appeal of the door over its lifespan.
Anodizing uses an electrical process to grow a hard, durable protective layer directly out of the metal itself. It cannot chip, peel, or flake. It comes in clear, bronze, dark bronze, and black. Scratches cannot be touched up, so it works best in low-impact areas.
Powder coating gives you more color options. A dry powder is applied using an electric charge and then baked on at 380 to 420°F. Two quality levels are rated by the American Architectural Manufacturers Association (AAMA):
AAMA 2604 holds color for around 5 years and is fine for most homes. AAMA 2605 uses stronger polyvinylidene fluoride (PVDF) resins, holds color for 10 to 20 years, and is the better choice for doors that face direct sun or sit near the coast.
What this means for your home: AAMA 2604 suits most homes. Go with AAMA 2605 if your door gets strong direct sun all day, or you live near salt air. That dull, chalky look you see on old garage doors is what happens when a lower-grade finish breaks down after years of sun.
For color and design options, our modern glass garage doors article covers that separately.
Types of Glass Used in Aluminum-Framed Garage Doors
All glass in garage doors must meet two safety standards: American National Standards Institute (ANSI) Z97.1 and CPSC 16 CFR Part 1201. These are federal requirements, not optional upgrades.
Regular window glass is not allowed. The Consumer Product Safety Commission (CPSC) estimates that cuts and lacerations cause 72 to 93 percent of glazing injuries. Some result in nerve damage or death.
Tempered glass is required. It delivers unmatched strength, making it four to five times stronger than regular glass. If it breaks, it crumbles into small, blunt pieces instead of sharp shards. Each pane must have a permanent etched mark in the corner confirming it meets the standard.
Each glass type comes with different trade-offs for insulation, weight, and cost. R-values below are for the glass unit alone, not the full assembled door.
| Glass Type | R-Value | Best For |
|---|---|---|
| Single-Pane Tempered | ~0.9 | Lightest option, minimal insulation |
| Double-Pane Insulated | 2.0 to 3.0 | Better insulation and noise reduction |
| Low-E with Argon Fill | Up to 3.8 | Best thermal performance for glass alone |
| Polycarbonate | Varies | Lightweight, with less optical clarity |
A variety of glass styles are available, including clear, frosted, gray-tinted, bronze-tinted, satin-etched, and white-laminated. Large panels let in plenty of natural light and cut down on the need for daytime lighting.
How Aluminum Glass Garage Doors Are Built
Frame Construction
“Commercial-grade” is a real spec, not just a sales term. Most home doors run 1-3/8 to 2 inches thick. Premium lines go thicker:
Clopay’s Avante uses a 2-1/8 inch frame, and the trackless VertiStack Avante uses 2-5/8 inch framing with no overhead track, which changes how structural load is distributed. Both the Amarr Vista and Wayne Dalton 8800 series use 2-inch frames.
The metal wall inside the frame runs from 0.065 inches on lighter sections to 0.125 inches at hinge points. Thicker walls at the hinges stop hardware from pulling through under repeated use.
How Glass Panels Are Held In Place
Two methods are used to hold glass in the frame:
Dry glazing uses rubber gaskets or vinyl beads. Replacement parts are easy to source, and panels are simple to swap if a pane breaks. But the gaskets wear out over time from the sun and cold, eventually needing service.
Wet glazing uses structural silicone to bond glass directly to the frame. It forms a permanent waterproof seal. A better choice for climates with harsh freeze-thaw cycles, like Eastern Pennsylvania.
Thermal Performance and Insulation
Aluminum conducts heat about four times faster than steel. Without insulation, cold outside air travels straight through the frame into your garage. This is called thermal bridging. It causes frost on interior rails and makes your garage harder to heat.
Two solutions exist. Foam-filled stiles and rails (like Clopay’s Intellicore® system) push the door’s insulation rating (R-value) up to around 3.8 and reduce operating noise. Thermally broken frames go further by inserting a non-conductive polyamide strut between the inner and outer metal sections, cutting the heat transfer path almost entirely.
What this means for your home: Aluminum conducts heat and cold very efficiently, so without insulation, outdoor temperatures travel straight through the frame into your garage. Foam-filled rails slow this down significantly. A thermally broken frame, however, stops it almost entirely. So if you heat your garage in winter, one of these two upgrades is worth it.
Aluminum vs. Other Frame Materials
| Spec | Aluminum Glass | Premium Steel | Custom Wood |
|---|---|---|---|
| Corrosion Risk | None | High if paint is scratched | High without regular sealing |
| Weight | Light to moderate | Heavy | Very heavy |
| Max R-Value | 3.8 to 4.5 | 18 to 20+ | 8 to 10 |
| Maintenance | Wash twice yearly, lube hardware | Touch up paint chips quickly | Sand, stain, and seal every 2 to 3 years |
Steel doors resist dents and impacts better than aluminum. Wood warps, absorbs moisture, and eventually rots. Aluminum stays straight and rust-free year-round with almost no upkeep, making it ideal for humid climates and low-maintenance households.
What to Ask Before You Buy
Request a frame at least 2 inches thick with 0.125-inch walls at hinge points. Confirm whether the glass is insulated and whether the door uses a thermally broken frame if the garage is heated. Ask whether the glazing is dry or wet, and verify the powder coat meets AAMA 2604 or AAMA 2605. If budget allows, upgrade to 25,000-cycle commercial torsion springs, since standard 10,000-cycle springs wear faster under insulated glass weight.
For homeowners in Montgomery, Bucks, or Berks County, Valley Lock & Door can walk you through frame specs, glass options, and insulation choices based on your space and climate. Contact our garage door installation team to find the right fit for your home.
Frequently Asked Questions
What type of aluminum is used in aluminum glass garage door frames?
The standard is 6063 alloy, heat-treated to T5 for homes and T6 for wide commercial openings. The magnesium-silicon mix gives it the corrosion resistance and shaping ability needed for full-view door frames.
Are aluminum glass garage doors a low-maintenance choice for humid or coastal climates?
Yes. Aluminum cannot rust. When scratched, it seals itself rather than spreading corrosion. That makes it a much better long-term choice than steel in wet or salty environments like Eastern Pennsylvania.
How does insulation work in aluminum glass garage doors?
Foam injected into the frame raises the insulation rating and reduces noise. Thermally broken frames cut heat transfer through the metal almost entirely. Upgrading to double-pane or Low-E argon glass adds more. A fully upgraded door reaches an R-value of around 4.0 to 4.5.
