Programming a garage door opener means syncing a transmitter, like a remote control or a keypad, to the receiver inside the motor unit so it recognizes that signal every time. Phones can also act as transmitters through the manufacturer’s app.
Most jobs take just a few minutes for a standard remote, once you know where the Learn button is and how long your unit gives you to pair a device.
What Programming a Garage Door Opener Actually Means
Nearly every opener built in the last few decades uses rolling code technology, a security system where the signal changes with every press, so an old code can’t be reused. That’s good for security, but it’s also why a remote from one brand rarely works with a motor from another: the frequency and code have to match exactly.
A universal remote works around this with multiple pre-programmed code sets instead of a single brand match, so it isn’t locked to any one manufacturer.
Do Garage Door Remotes Have to Match the Opener Brand?
Generally, yes. A LiftMaster remote works with a LiftMaster or Chamberlain motor, and a Genie one is built for a Genie unit. Check the model number on the motor unit label if you’re unsure what you have, or pick up a universal option instead, since those stay compatible across brands. The most common brands we service across the Upper Perkiomen Valley and surrounding counties are LiftMaster, Chamberlain, Genie, and Craftsman.
What You Need Before You Start
Prepare these before you climb the ladder:
- A sturdy, free-standing ladder, since the opener sits on the ceiling away from the wall.
- The remote or keypad you’re programming, with fresh batteries loaded.
- The model number is on the motor unit label, in case you need the manual.
- A flashlight, since a lot of garages don’t have great overhead lighting.
If you’re programming a keypad or a car, it also helps to have a second person on hand.
Locating the Garage Door Opener Learn Button
The Learn button puts the receiver into programming mode. Look near the antenna wire or under the light lens cover; some units place it on the back panel instead. LiftMaster and Chamberlain call it the Learn button, and Craftsman does too. Genie units sometimes label it Program or Learn Code instead. Color depends on the unit’s age, sometimes green or purple, other times yellow or red, so consult your manual instead of matching a photo online.
| Device | Where to Start | Roughly How Long |
|---|---|---|
Handheld remote | Learn button on the motor unit | Under 5 minutes |
Wireless keypad | New PIN, then Learn mode | 5 to 10 minutes |
Phone app | The opener’s app settings | A few minutes |
Car (HomeLink) | HomeLink panel, then the Learn button (skipped on the newest units) | 10 to 15 minutes, plus retries |
How to Program a Garage Door Opener Remote Control
- Set up your ladder under the motor unit, find the Learn button, and press and release it. The indicator light should turn on steadily, showing the receiver is ready.
- Within the time window your unit allows, often 15 to 30 seconds, press the necessary buttons on your remote. When the overhead lights flash, or you hear two clicks, the pairing is confirmed, and the light should respond within a few seconds.
Test the remote from your car or driveway. If the light times out first, just repeat the sequence. It happens often, especially your first time juggling a ladder and a remote at once.
Programming a Wireless Keypad
Choose or enter a PIN on the keypad first, then put the motor unit into Learn mode and enter that same PIN so the receiver stores it, limiting garage access to people who know the code. The button combination varies enough between brands that it’s worth pulling up your manual instead of guessing.
Programming Through a Phone
Newer systems let you skip the remote and use the manufacturer’s app instead. Chamberlain’s myQ is the version we see most often locally. Sign in, scroll to the settings menu, then select “add a device” to pair the opener. Our notes on myQ-connected openers cover the setup in more detail.
How to Program a Garage Door Opener to a Car
Cars with a built-in garage door button, known as HomeLink or Car2U, need two steps because of rolling code security. First, wipe the vehicle’s memory: hold the two outer HomeLink buttons in your car, near the rearview mirror, for up to 20 seconds until the light shifts from solid to a fast blink. Next, clone the remote’s signal. Hold your handheld remote an inch from the panel and press both buttons together until the light flashes rapidly.
Fixed-code systems stop there. Rolling code systems, which cover most homes updated in the last couple of decades, need a third step: press the Learn button on the motor unit, get back to the car within 30 seconds, and press the cloned HomeLink button for a couple of seconds, releasing and repeating up to three times.
Some of the newest units skip the motor unit step for car programming entirely and sync straight from the remote to the vehicle. Check your manual to see whether yours uses this newer process, called Security+ 3.0, since the flow is different enough that it’s worth confirming before you climb the ladder for nothing.
We see a version of this on calls in Red Hill and Pennsburg: a cloned HomeLink button works fine in the driveway but fails once the car pulls into a detached garage behind an older farmhouse. Extra distance and a wall in between are almost always the real cause.
Honestly, having a second person press the Learn button while you stay in the driver’s seat is what saves this step, since the 30-second clock runs out fast when walking back and forth alone. That’s the same principle behind another small habit worth building.
Troubleshooting Tips: Why Won’t My Remote Program?
Dead batteries are the most common reason pairing fails, so swap them first, even if the remote seems to operate fine elsewhere. Cold weather makes weak batteries worse, and it’s a real issue for the older, detached farmhouse garages we service around the Upper Perkiomen Valley, where overnight temperatures drop well below freezing all winter. Standard alkaline batteries are the ones that lose the most charge in the cold, so if your remote keeps acting up once the weather turns, swapping in lithium batteries instead is worth trying since they hold their charge much better at freezing temperatures.
A brand or frequency mismatch blocks connecting completely, and missing the time window causes trouble too, especially on openers with a 15-second pairing window. A full receiver memory can also block new pairings, and poorly shielded LED bulbs in the motor unit’s own light fixture can jam your remote’s frequency. If pairing fails right where the light is on, remove the bulb and test again.
If your wired wall button still opens the door but every remote attempt fails, that points to something beyond programming, covered next.
Resetting a Garage Door Opener Completely
Press and hold the Learn button for around 6 seconds until the indicator light goes dark. This wipes the receiver’s memory clean, removing every paired remote and keypad, plus any vehicle connection, so it will operate like new again. Reprogram each device you want to keep afterward. Most households finish in 5 to 10 minutes. This is also the standard fix after a power outage scrambles a unit’s memory.
When Programming Isn’t the Problem
If the wired wall console opens the door but every remote and keypad attempt fails, the receiver or logic board may have failed. Power surges and old age are the most common causes. If the door reverses the instant it starts moving, check the safety sensors near the tracks.
Dirt or misalignment on the sensor eye causes this on its own, and so can direct sun hitting it. Track friction or a bad force setting on the motor is the usual culprit behind a door that stops partway through opening or closing. Our guide to garage doors that won’t open walks through each of these symptoms.

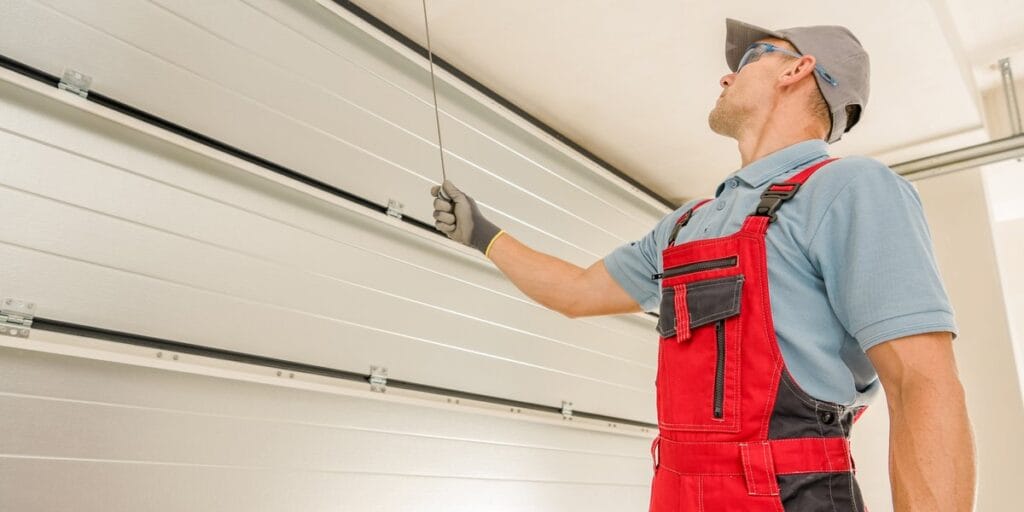

A door that feels unusually heavy when you pull the manual release cord signals a failing torsion spring, the coiled spring carrying the door’s full weight. That’s dangerous, so call a professional instead of reaching for a remote. Any of these signs calls for a repair visit rather than another round of button presses.
An older opener where parts are hard to find is worth weighing against a new opener instead of chasing repeated fixes.
If you’re across the Upper Perkiomen Valley or anywhere in our service area and your opener has stopped responding entirely, or you’re just stuck on one of these steps, feel free to contact us for a free estimate. We can tell you on the call whether it’s worth repairing or time to replace.
A Word on Safety
Set the ladder on flat, dry ground away from the door’s travel path, and keep loose clothing and drawstrings clear of the belt or chain drive while the unit is powered. Federal safety rules require entrapment protection, like photoelectric sensors, on residential garage door openers made after 1993. Testing the door after programming anything is essential, since that sensor is easy to forget about until the moment it matters.
When to Call a Local Pro
Programming a remote or keypad is a genuine DIY task in almost every case, and syncing to a car usually is too. An opener that’s older or keeps failing pairing attempts even after a reset is worth a professional visit, and the same goes for safety sensor or force-setting issues.
